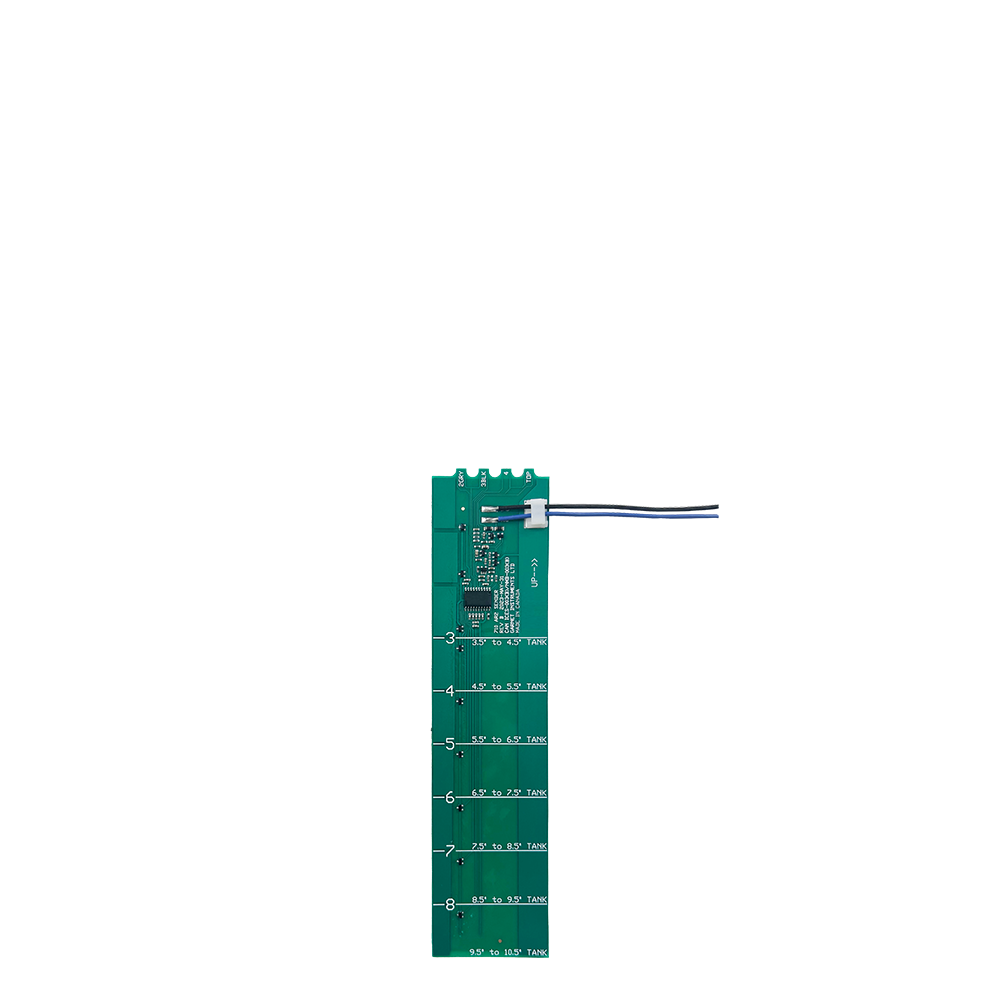

710-AR2 9" Sender

Item Code: 710-AR2

The 710-AR2 is 9" long and can be cut down to 3 - 1" segments. It is ideal for tanks 3.5"-11" tall but can be stacked with an additional 710-AR2 to measure tanks as tall as 20". With its fine resolution, it ensures more precise measurement. Senders work on plastic/polyethylene and fiberglass tanks.

Warning: The selected options below are default options and may not match the recommended configuration from the Selection Tool. Please update the options manually to apply the suggested setup.

US$55.65
EA (1)

Specifications

Specifications

Accuracy:  +/- 8% or better, limited by resolution and tank height and shape.

Resolution:  0.25” (6 mm)

Sender Materials:  Flexible glass epoxy circuit board with conformal coating for circuit protection. Laminated on the back with 3M 300LSE bonding adhesive.



Optimal Tank Height:  3.5” - 11” (single)  up to 20” (dual)  (On 4-tank models, the grey and galley tanks can only have one sender)

Number of Tanks Measured:  up to 7 tanks  (model dependant)

Sender Dimensions:  9.15” high x 2.20” wide

Operating Temperature Range:  +32 °F to +140 °F (0 °C to + 60 °C)

Resources

Resources

Download wiring diagrams and installation manuals from our Resource Library

Installation videos can be found on our Holding Tank Videos page.
