709-RVC Display

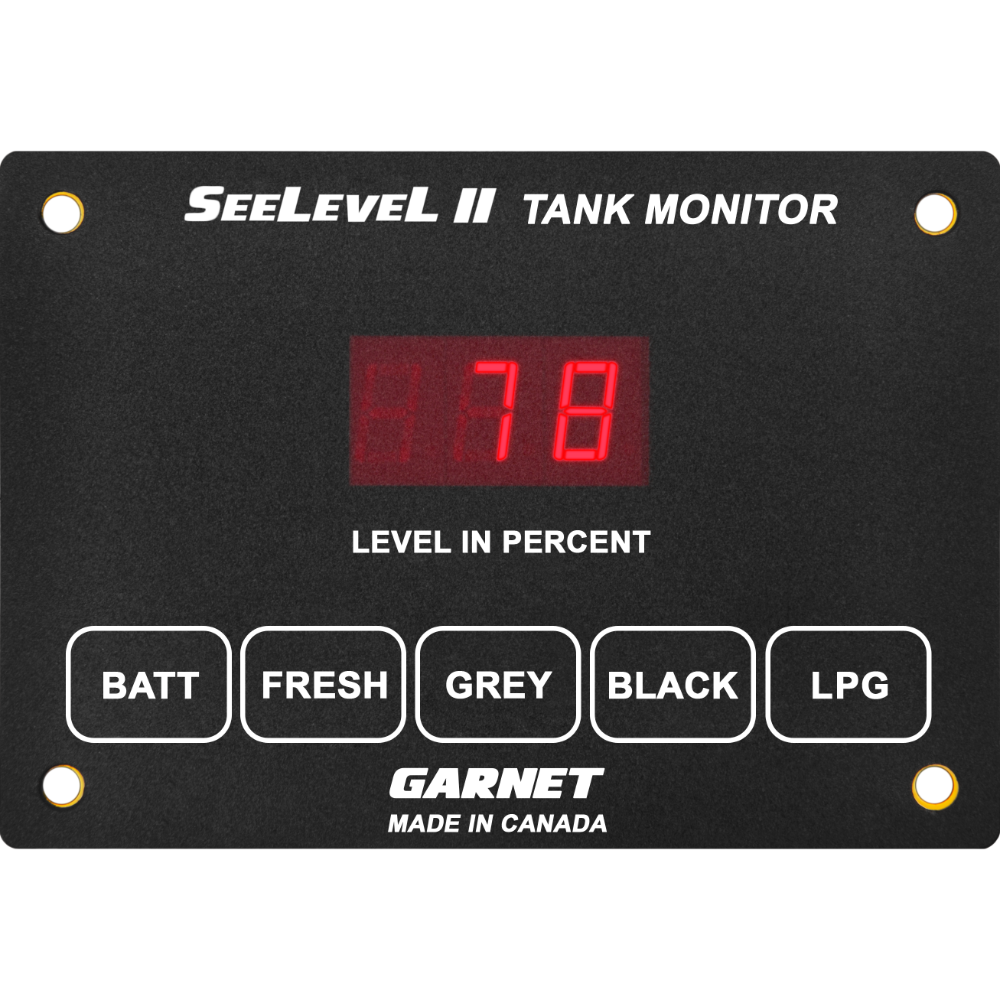

The 709-RVC Display monitors Battery Voltage, Fresh, Grey, Black and LPG levels. Display is equipped with RV-C interface for integration into MultiPlex systems. System includes (1) 709-RVC Display, (1) Pigtail Harness, Choice of (3) Senders and (4) Mounting Screws. Display works in conjunction with the 710-AR, 710-ES2 and 710-SS senders. To monitor the LPG levels, the tank must be equipped with a two-conductor Ohms resistance gauge.

Warning: The selected options below are default options and may not match the recommended configuration from the Selection Tool. Please update the options manually to apply the suggested setup.

Main Product

Required Part 1

Main Item Price US$ 0.00
Optional Item Price US$ 254.69
Price for this Configuration US$ 254.69
US$254.69

Specifications

Specifications

Display Panel: Black panel, approximately 4" wide by 2.8" high by 1" thick (102mm wide X 71mm high X 25mm thick). Panel screws to the wall.

System Power: Display requires 12 volts from the RV battery, the system will function from 11 volts to 16 volts.  Current drain is less than 200mA.

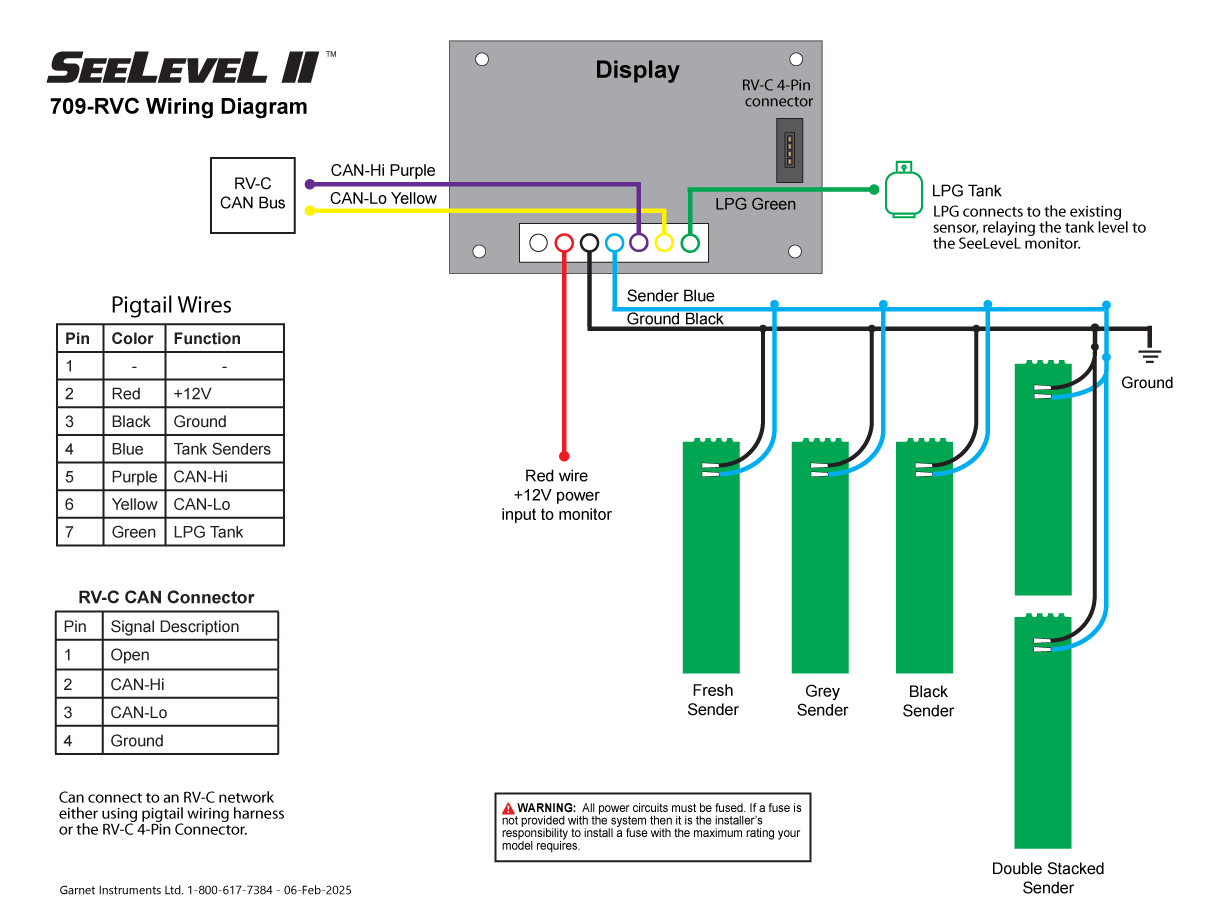

Wiring: A single two-wire conductor is required from the display to the senders. All the senders are wired in parallel. 12 V power and ground are required for display. A separate two-wire conductor is required from the display to the LPG sender.

LPG: Display will work with an LPG sender with a maximum resistance of 50 ohms to 500 ohms.  Display shows increasing level as resistance increases.  System must be calibrated with the LPG tank full.

*Sender specifications can be found on each sender's own product page.
