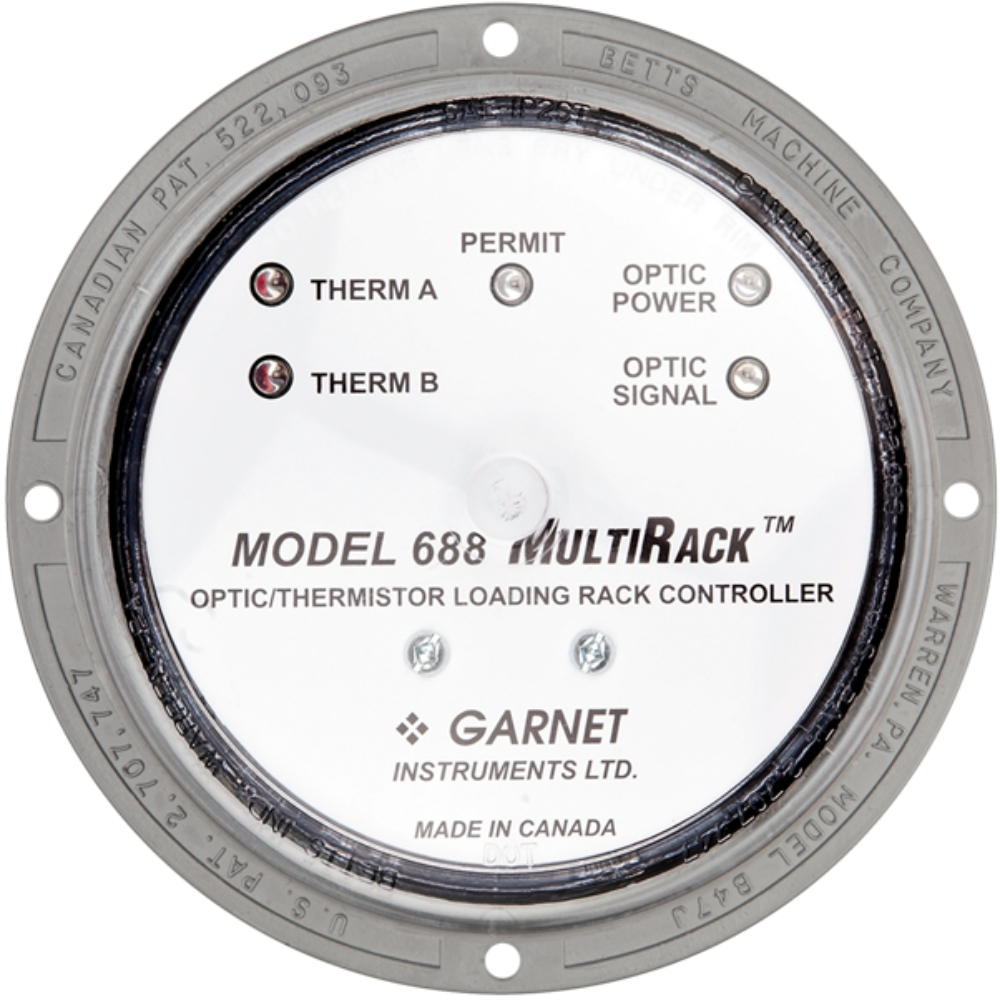

MultiRack, Single Compartment

Item Code: 688-S

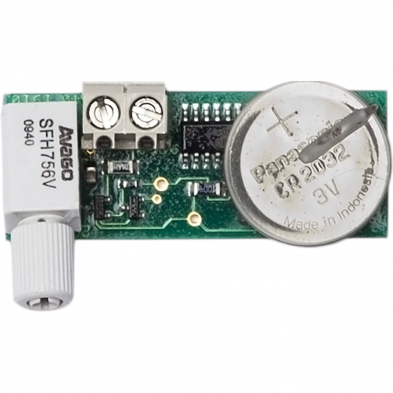

The 688-S MultiRack Controller is used in conjunction with the 808-P2 for overfill control on optic and thermistor style loading racks. A 688-M Driver Module is required for operation and sold separately.

Warning: The selected options below are default options and may not match the recommended configuration from the Selection Tool. Please update the options manually to apply the suggested setup.

US$1,049.16
EA (1)

Specifications

Specifications

Material Enclosure: PBT plastic, Lid: polycarbonate
Size: 152 mm (6") diameter, 67 mm 2 5/8") deep
Display type: LED lights
External power: 12 Vdc truck power
Battery power: Powered by lithium battery
Ambient temperature range: -40°C to +60°C (-40°F to +140°F) ambient

Resources

Resources

Download wiring diagrams and installation manuals from our Resource Library
