Junction Box

Item Code: 815-JBC

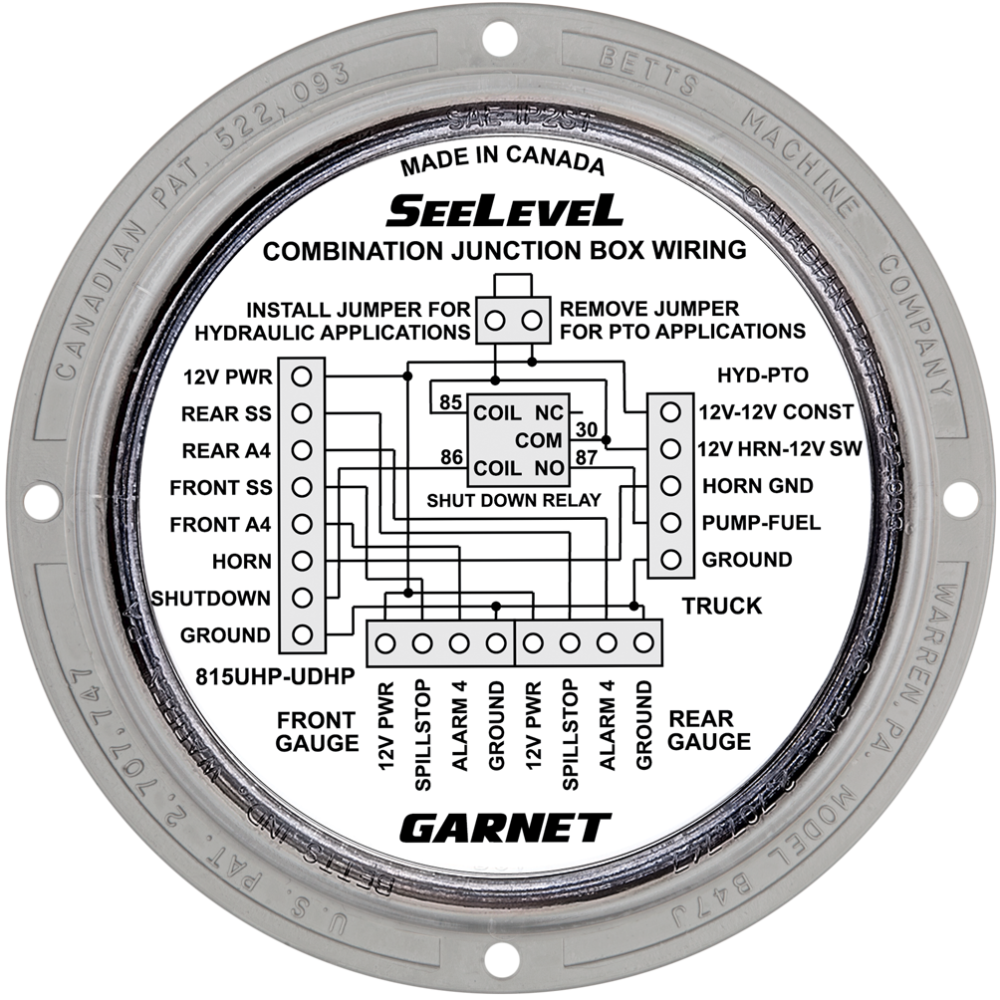

The 815-JBC Junction Box can be used for Hydraulic or PTO pump control and has labeled terminal blocks to simplify wiring. This product works with the 808-P2 and 815-UHP/815-UHP/H SpillStops. Includes pre-installed, field replaceable 5 terminal automotive relay.

Warning: The selected options below are default options and may not match the recommended configuration from the Selection Tool. Please update the options manually to apply the suggested setup.

US$166.68
EA (1)

Specifications

Specifications

Material Enclosure:  PBT plastic, Lid: polycarbonate
Size: 152 mm (6") diameter, 67 mm 2 5/8") deep
External power: 12 Vdc truck power
Ambient temperature range:  -40°C to +60°C (-40°F to +140°F) ambient
