808-P2 SeeLeveL Special System

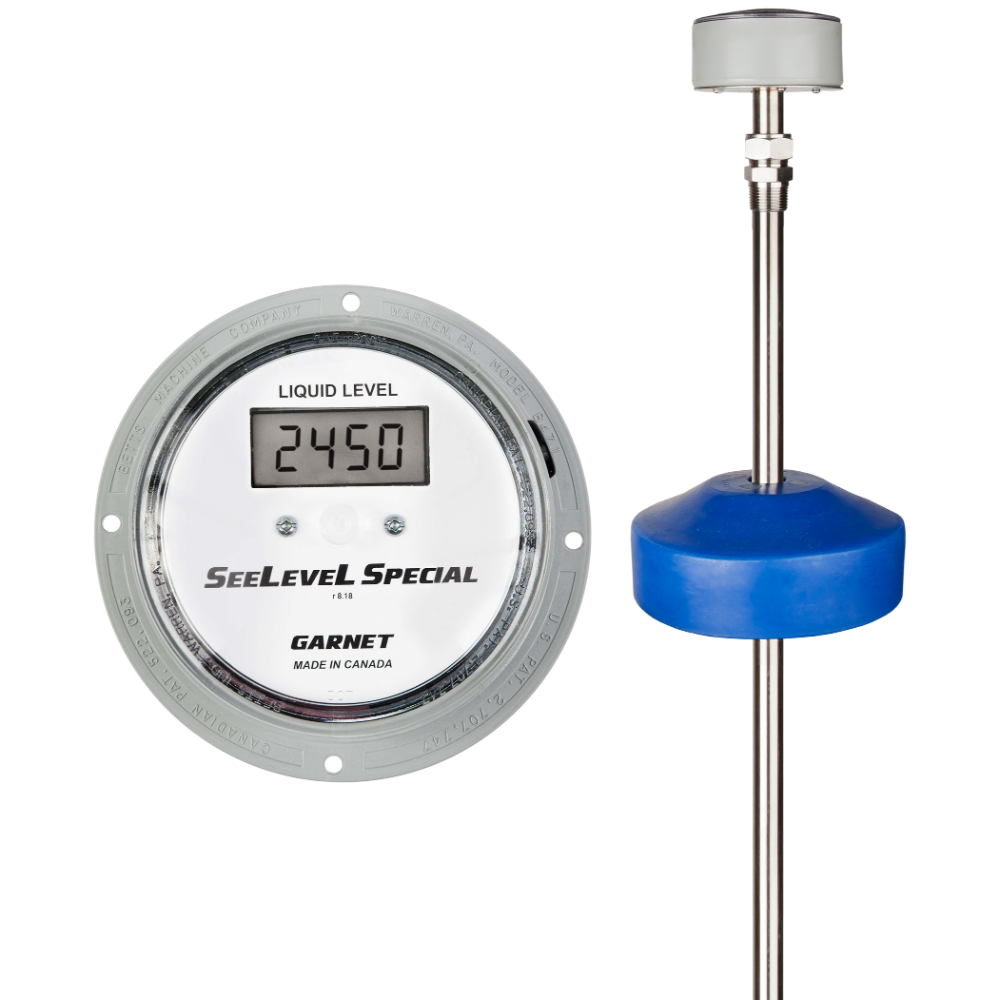

Complete 808-P2 SeeLeveL Special System monitors the fluid level of flammable liquids. System comes standard with (1) 810-X sender bar, (1) 808-P2 display, (1) 250-Truck Float (2) 250-1/4x1/4NPT brass fittings. Customize your sender bar by upgrading the compression fitting, float or selecting our one of our sender bar cut options. Display programming options are also available. Detailed cut length or programming instructions can be added to the comment box at the bottom of the order page. Please review the Customizing Notice before submitting your order.



Fiber Optic Cable, float supports and NPT collars are sold separately.

Warning: The selected options below are default options and may not match the recommended configuration from the Selection Tool. Please update the options manually to apply the suggested setup.

Main Product

Required Product 1

Option for programming

Program display, set offset and store alarms (US$110.00)
Required Product 2

Required Product 3

Options for cutting the 810-X bar

001-ACID_WELD (US$175.00)
001-CRUDE_WELD (US$110.00)
001-CUT_PREPARATION (US$110.00)
001-UNCUT (US$0.00)
Comp Fit Selection Options

Options for End Cut 1

Options for End Cut 2

Required Product 4

Float Selection Option

Comment

Comment
Main Item Price US$ 0.00
Optional Item Price US$ 3,200.89
Price for this Configuration US$ 3,200.89
US$3,090.89

Specifications

Specifications

Resolution: 1/3” (8 mm)

Accuracy:  +/- 1/4” (+/- 6 mm)

System Power:  Powered by a field replaceable lithium battery module with a lifetime of approx. 10 years

Input Power:  10-15 Vdc, 180 mA max. (minimum 1-amp fuse)

Product temperature range:  -40°F to +194°F (-40°C to +90°C)

Maximum tank height:  1 amp at 15 Vdc

Display Enclosure:  Material - PBT plastic, Lid: polycarbonate, Size - 6" (152 mm) in dia x 2 ¾" (70 mm) deep

Display Ambient temperature range:  -40°F to +140°F (-40°C to +60°C) ambient

External power:  Light behind the LCD is powered by 12 Vdc truck power

Battery Power: Powered by a lithium battery with a lifetime of approximately 10 years

Resources

Resources

Download wiring diagrams and installation manuals from our Resource Library
